Ruby Slider

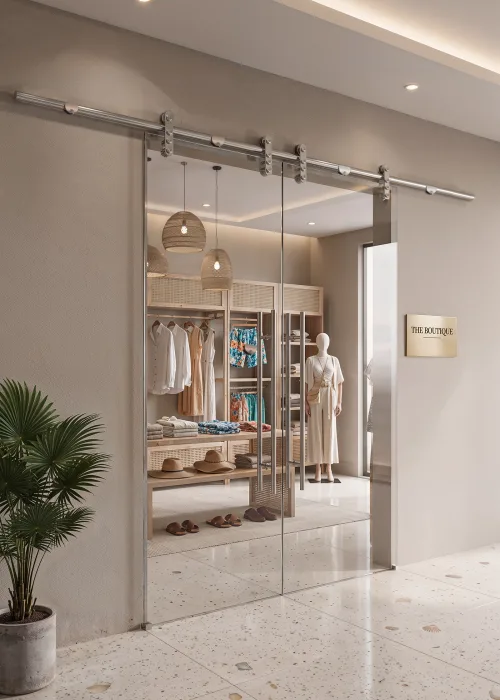

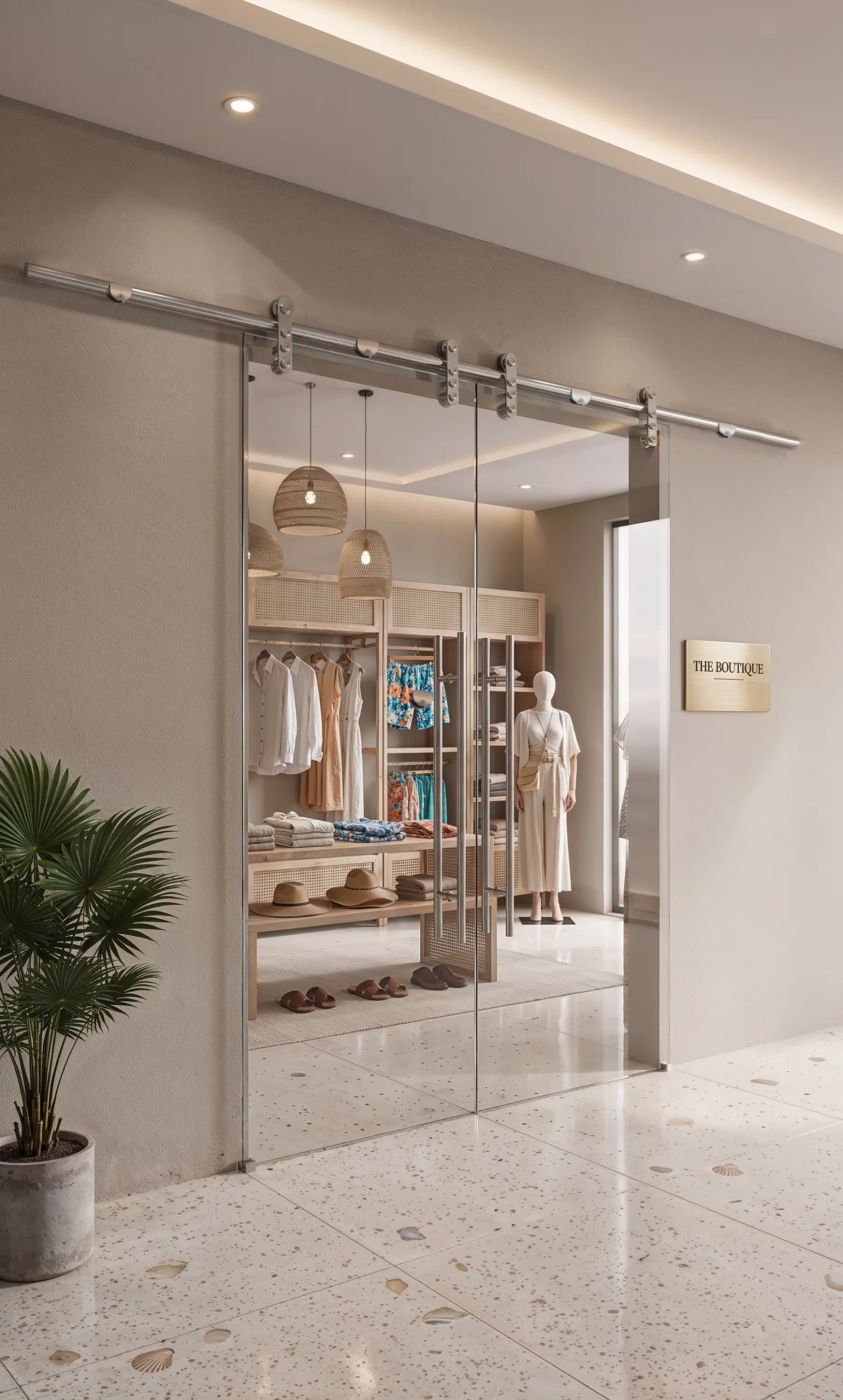

PRL’s Ruby interior all-glass top-hung sliding doors offer a sleek, space-saving solution with smooth operation, ideal for commercial and residential entryways, and available in sliding or pivot systems.

Product Details

PRL’s Ruby interior all-glass sliding door system is a space-saving, elegant solution with smooth, trackless operation. Made from stainless steel, it supports 3/8” and ½” tempered glass and offers various locks, handles, and decorative glass options for a sleek, modern design.

2 Rollers – 200 lbs
Wall mount & Glass mount
Patch Lock, Center lock or Locking ladder pull
Standard C Pull, Ladder pull, Finger pull or Locking ladder pull
Standard C Pull, Ladder pull, Finger pull or Locking ladder pull
Track Lenght: Up to 20″ long
Max panel width: 54″ / Max panel height 99″
interior commercial / Exterior commercial

STYLES

PRODUCT OVERVIEW

HARDWARE

GLASS TYPES

HARDWARE FINISHES

Styles

WALL MOUNTGLASS MOUNT

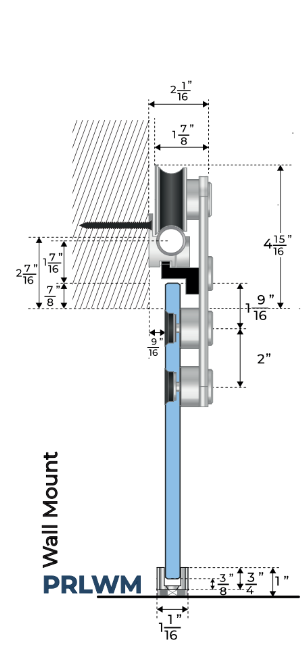

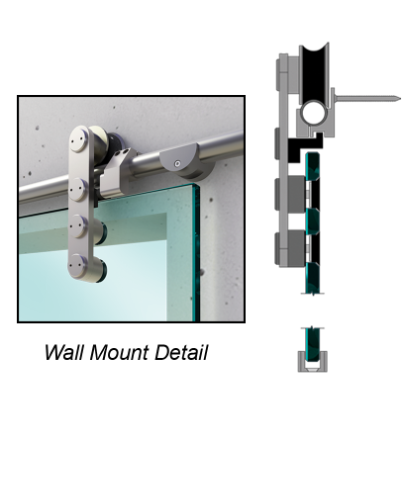

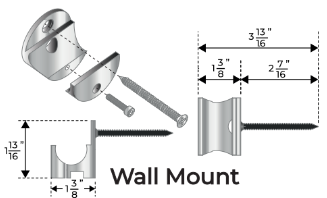

WALL MOUNT

PRL’s Wall Mount Ruby sliding doors provide a modern look for an all-glass interior application. These wall brackets are easy to install which add value through its durability and ease of use. Mounting to the wall creates a clean and sophisticated look. Glass panels slide and tuck away easily to free up space with simple, smooth operation. Each system requires the use of track-mounted door stops in both the open and closed positions. Use your space efficiently and show off interiors with wall mount Ruby all glass sliders

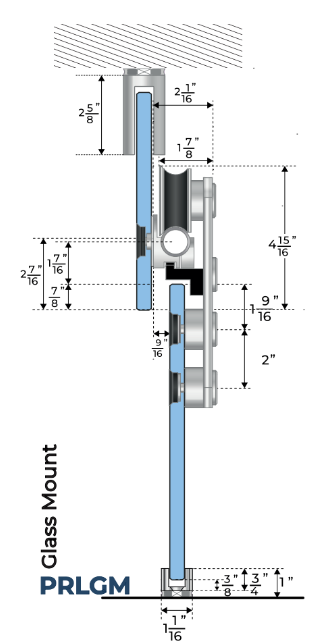

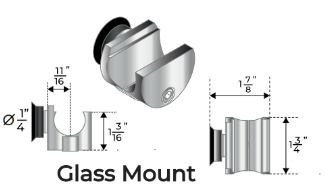

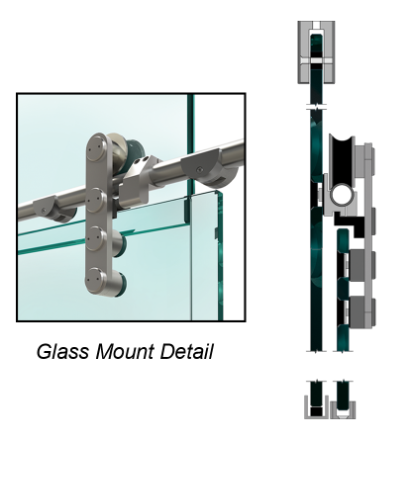

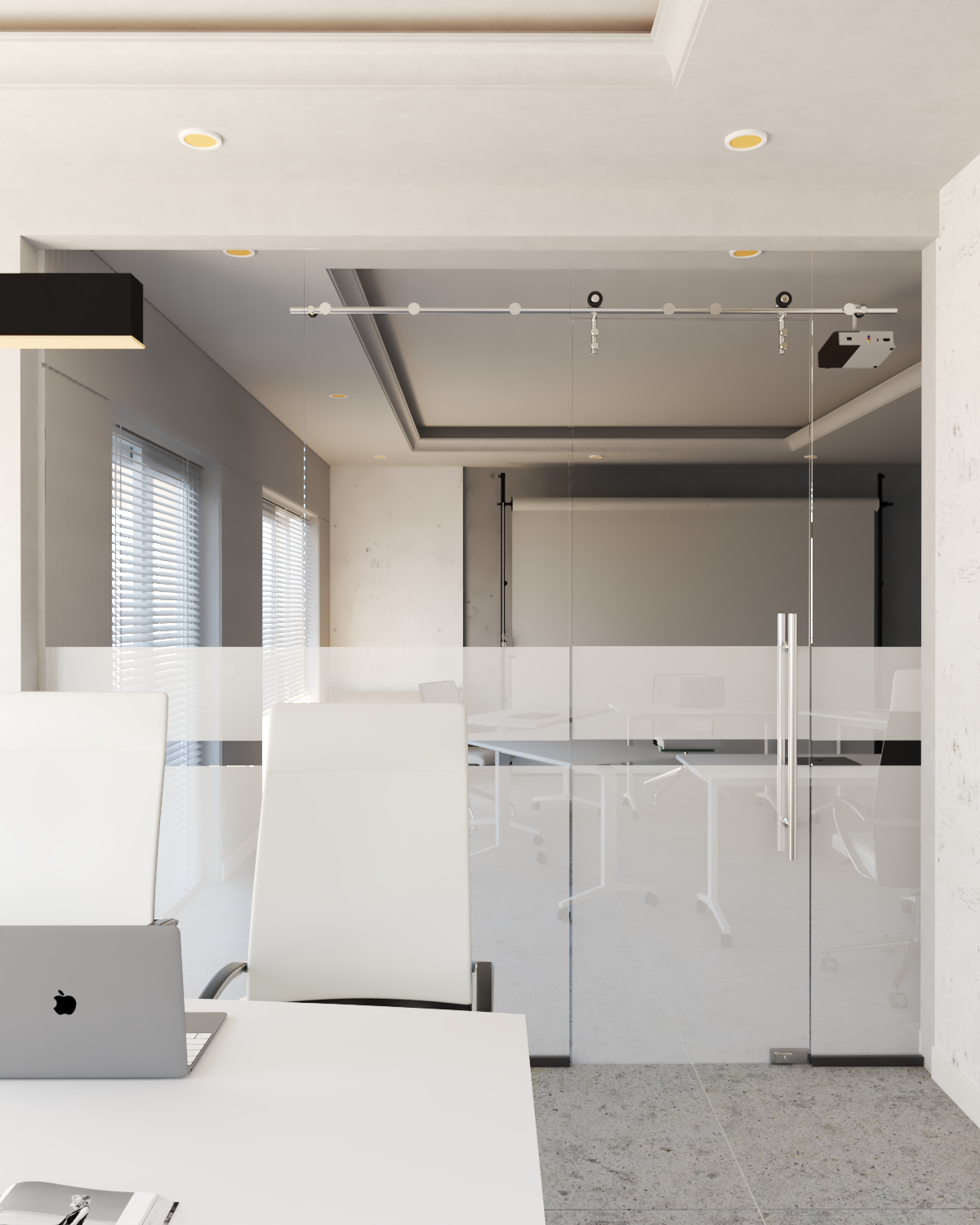

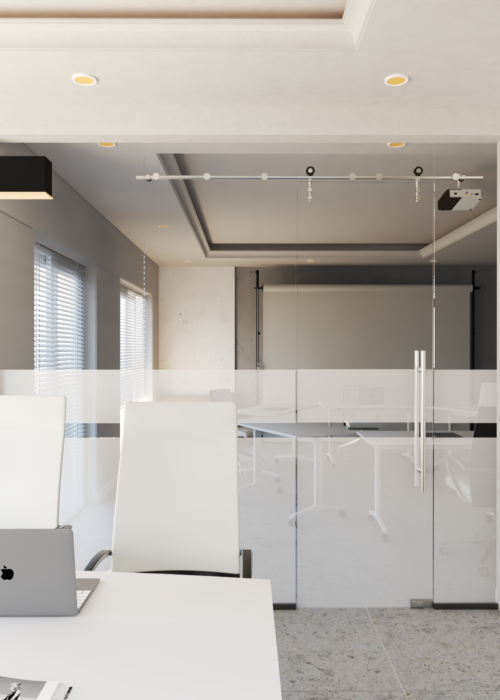

GLASS MOUNT

Our interior top hung Ruby sliding door system boasts uninterrupted all-glass views. The track is surface mounted to the tempered glass, through the glass sidelights and transom. Each system requires the use of track-mounted door stops in both open and closed positions. In applications that have transoms, it is important to note the transom lite must be mechanically fastened to the ceiling for adequate support. PRL is able to provide a 1-3/8 x 2-5/8” pinning channel which is typically run the length of the entire opening, however, only the transom lite will require pinning.

Ruby Sliding Door Overview

FRAMELESS ALL GLASS RUBY SLIDERS

RUBY INTERIOR

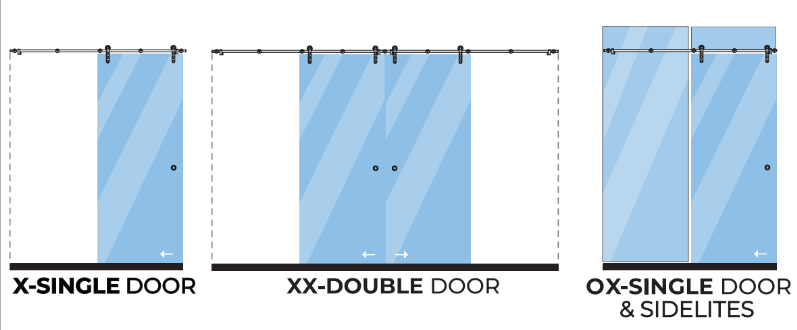

PRL’s Ruby interior all-glass top hung sliding door systems are the ideal solution for limited space and budgets. Designed for interior commercial and residential all-glass entryways, the Ruby provides a beautiful, sweeping, floating effect using minimal top hung tracks and hardware to create an illusion of spaciousness. Manufactured to accommodate standard and narrow width entrances, the Ruby provides fluid, smooth and easy operation. Fabricated for single or double doors, the Ruby’s design is similar to a barn door slider that’s suspended from above providing a trackless, uninterrupted floor. Fabricated from quality stainless steel, the Ruby is available as an interior all-glass top hung sliding door system or a pivot system.

DISTINGUISHED OPTIONS

Fabricated to accommodate 3/8” and ½” tempered glass thicknesses, we offer premium quality brushed and polished stainless steel and custom matte black hardware finishes.

Select from our impressive array of lock and handle options such as patch and center locks, locking ladder pulls, offset and standard C pulls. We also provide a number of beautiful colored and textured glass options. To make your interior all-glass sliding doors stand out above the rest, adorn them with bronze, starphire, grey or textured glass panels to dazzle and impress.
